Product Overview

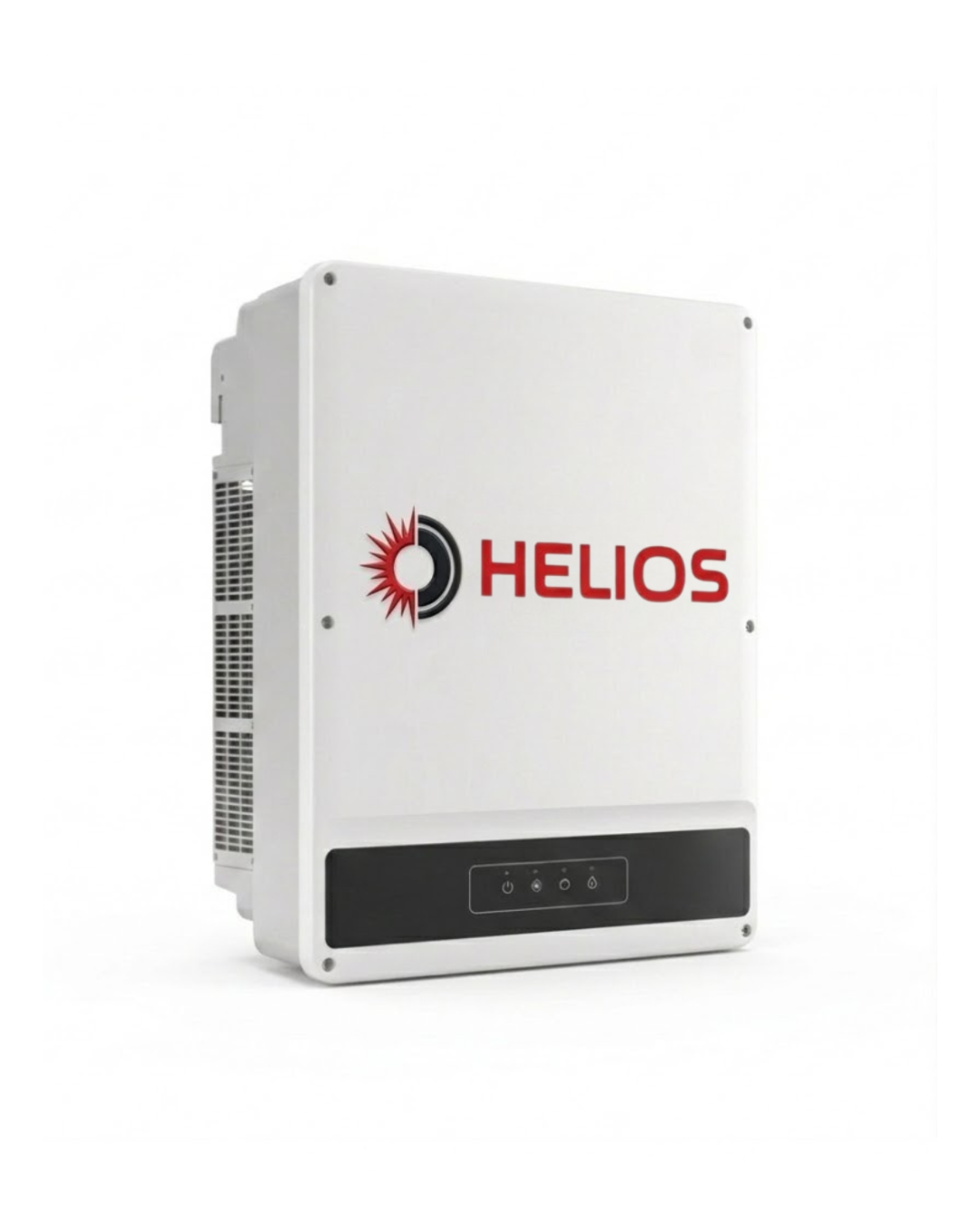

HELIOS 10kW Hybrid Solar Inverter ek high-capacity smart energy solution hai jo solar panels, battery storage aur grid power ko efficiently manage karta hai. Ye inverter large homes, villas aur small commercial setups ke liye design kiya gaya hai aur load shedding ke dauran reliable power backup provide karta hai.

Technical Specifications

Model: HELIOS OB-H10K
Inverter Type: Hybrid (Solar + Battery + Grid)

Output

• Rated Power: 10,000W (10kW)

• Max AC Output: 11,000W

• Output Voltage: 230V AC

• Frequency: 50Hz / 60Hz

• Waveform: Pure Sine Wave

Solar Input

• Max PV Input Power: 13,000W

• MPPT Trackers: 2

• MPPT Voltage Range: 150V – 500V

• Max PV Voltage: 550V

Battery

• Battery Voltage: 48V

• Battery Type: Lithium / Lead-Acid

• Max Charging Current: 150A

Efficiency

• Max Efficiency: up to 97.5%

• MPPT Efficiency: up to 99%

Protection

• Overload Protection

• Short Circuit Protection

• Over-Temperature Protection

• Anti-Islanding Protection

• Reverse Polarity Protection

Physical

• Cooling System: Intelligent Cooling Fans

• Protection Rating: IP65

• Installation: Wall Mounted
