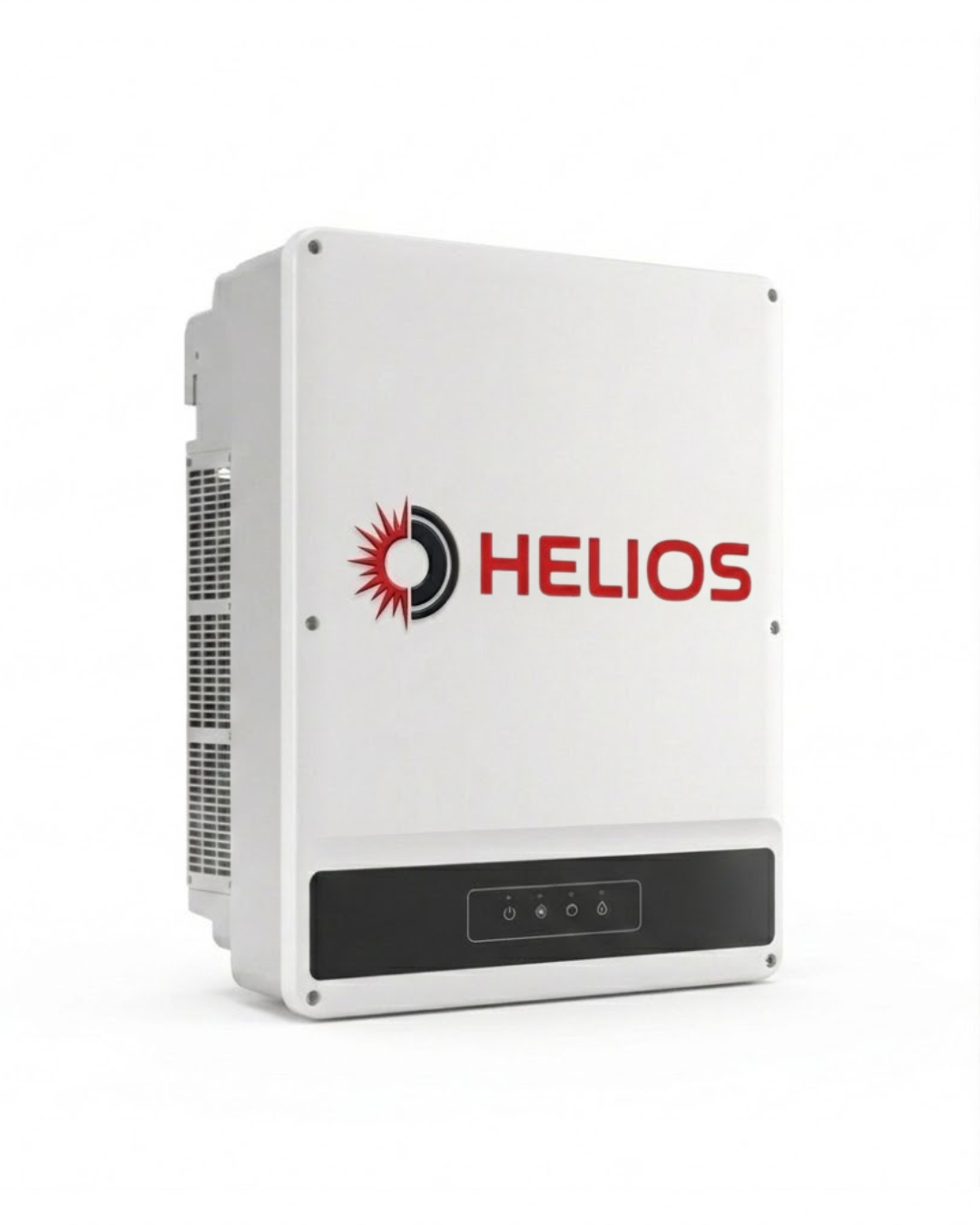

HELIOS 15kW Hybrid Solar Inverter ek high-performance energy management system hai jo solar panels, battery storage aur utility grid ko intelligently control karta hai. Ye inverter large homes, villas, offices aur commercial setups ke liye design kiya gaya hai aur heavy load conditions mein bhi reliable power provide karta hai.

Technical Specifications

Model: HELIOS OB-H15K
Inverter Type: Hybrid (Solar + Battery + Grid)

Output

• Rated Power: 15,000W (15kW)

• Max AC Output: 16,500W

• Output Voltage: 230V / 400V AC

• Frequency: 50Hz / 60Hz

• Waveform: Pure Sine Wave

Solar Input

• Max PV Input Power: 19,500W

• MPPT Trackers: 2

• MPPT Voltage Range: 180V – 550V

• Max PV Voltage: 600V

Battery

• Battery Voltage: 48V / High-Voltage Battery Compatible

• Battery Type: Lithium / Lead-Acid

• Max Charging Current: 200A

Efficiency

• Max Efficiency: up to 98%

• MPPT Efficiency: up to 99.5%

Protection

• Overload Protection

• Short Circuit Protection

• Over-Temperature Protection

• Anti-Islanding Protection

• Reverse Polarity Protection

• Surge Protection

Physical

• Cooling System: Intelligent Dual Cooling Fans

• Protection Rating: IP65 (Dust & Water Resistant)

• Installation: Wall Mounted
