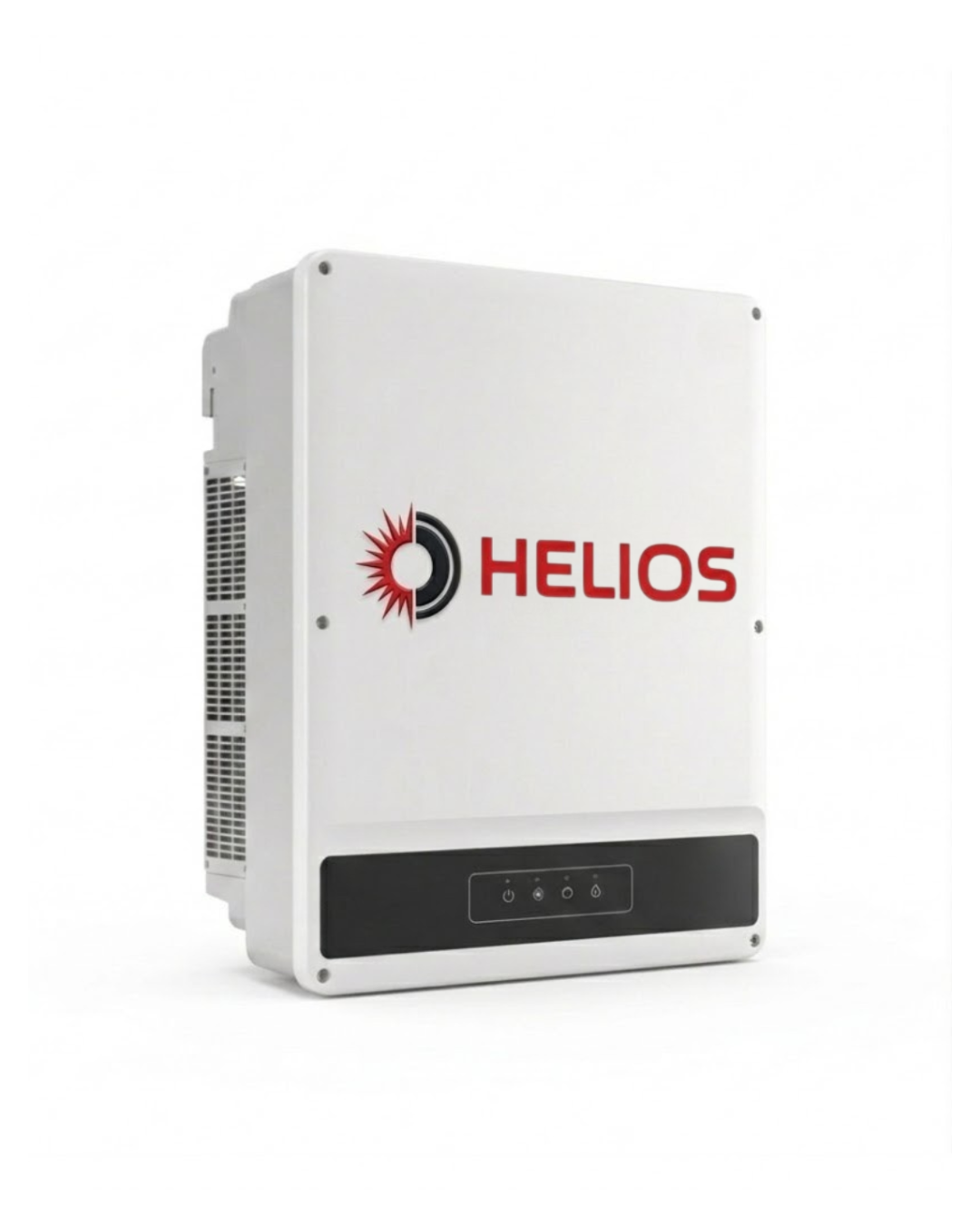

HELIOS 6kW Hybrid Solar Inverter – Smart Energy Storage System

Product Overview

HELIOS 6kW Hybrid Solar Inverter ek advanced energy management system hai jo solar panels, batteries aur grid electricity ko combine karke reliable power supply deta hai. Ye system homes aur small businesses ke liye ideal hai aur load shedding mein continuous backup provide karta hai.

Technical Specifications

Model: HELIOS OB-H6K
Inverter Type: Hybrid (Solar + Battery + Grid)

Output

Rated Power: 6000W (6kW)
Max AC Output: 6500W
Output Voltage: 230V AC
Frequency: 50Hz / 60Hz
Waveform: Pure Sine Wave

Solar Input

Max PV Input Power: 7500W
MPPT Trackers: 2
MPPT Voltage Range: 120V – 450V
Max PV Voltage: 500V

Battery

Battery Voltage: 48V
Battery Type: Lithium / Lead-Acid
Max Charging Current: 120–140A

Efficiency

Max Efficiency: up to 97%
MPPT Efficiency: up to 99%

Protection

Anti-Islanding Protection
Overload Protection
Short Circuit Protection
Over-Temperature Protection
Reverse Polarity Protection

Physical

Cooling System: Smart Cooling Fan
Protection Rating: IP65 (Dust & Water Resistant)
Installation: Wall Mounted

Hybrid inverters normally provide around 6000W output, dual MPPT solar input, aur 48V battery systems support karte hain, jo residential solar systems ke liye ideal hain.
