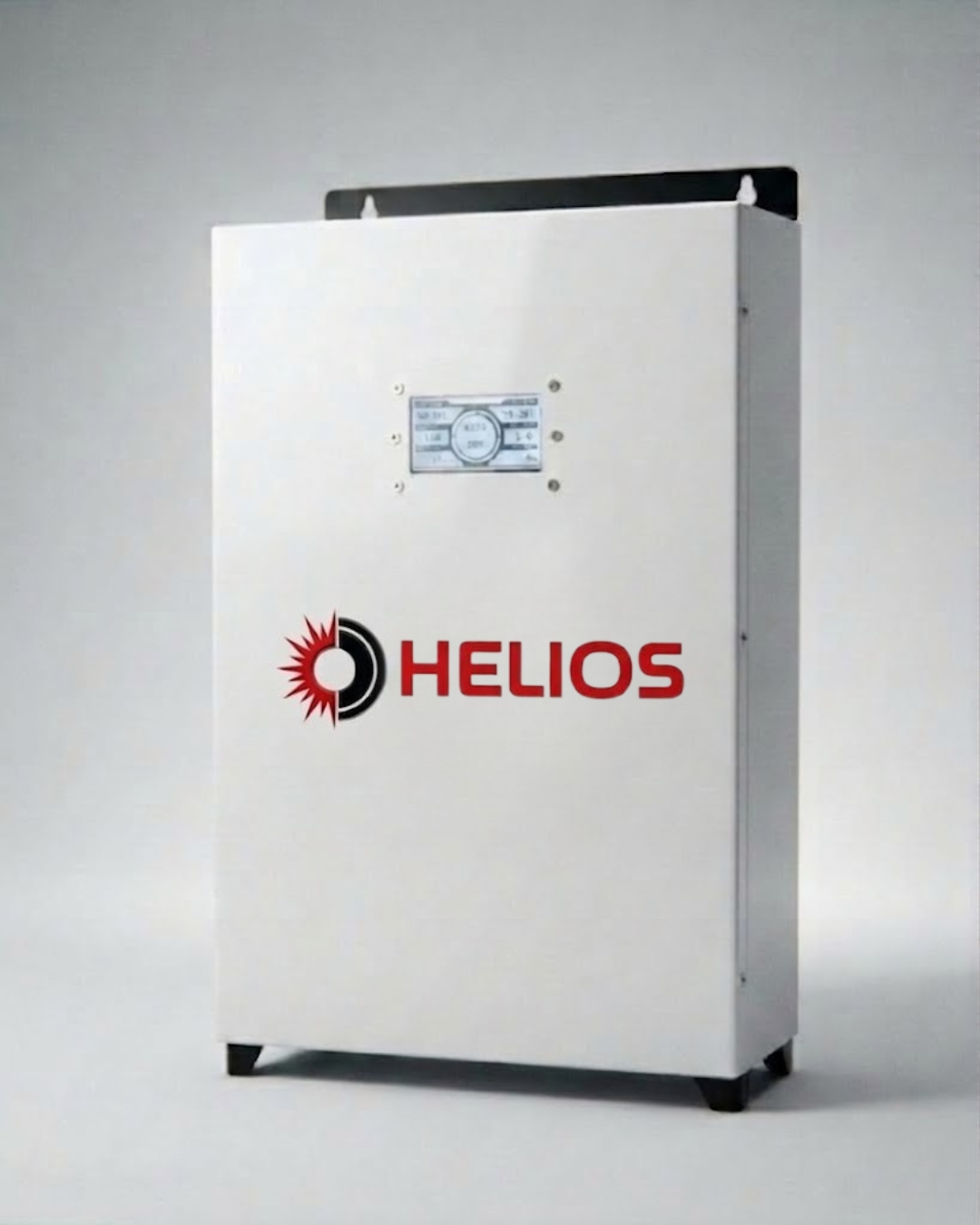

HELIOS Lithium-Ion 10kW

🔋 SBL 1016 LiFePO₄ Battery
Performance Parameters
Cell Type: LiFePO₄
Cell Specification: 210
Number of Cells: 16
Nominal Voltage: 51.2V
Operating Voltage: 44.8V–57.6V
Nominal Energy: 10.75kWh
Usable Energy: 9.67kWh
Charge/Discharge Current (Recommended): 105A
Charge/Discharge Current (Max): 200A

Communication
Display: SOC, Faults, and Operating Status
Communication Protocol: RS485/CAN

General Parameters
Weight: 93kg
Dimensions (W×H×D ±1mm): 420×660×245mm
Parallel Connection: Up to 15 units (≈76.8kWh total)
Life Cycle: ≥8000 cycles (25°C, 90% DOD, 1C, 70% EOL)
Operating Temperature:
Charge: 0°C–50°C
Discharge: -20°C–50°C
Storage Temperature:
-20°C–45°C (≤1 month)
-20°C–35°C (≤6 months)
Relative Humidity: 5%–95% (non-condensing)
Cooling Method: Natural Cooling
Installation: Floor-standing/Wall-mounted
Installation Environment: Indoor
Ingress Protection Rating: IP21
Maximum Operating Altitude: ≤2000m
Protection Features: Overvoltage, Overcurrent, Short Circuit, and Overtemperature Protection
Certification: CE, UN38.3
