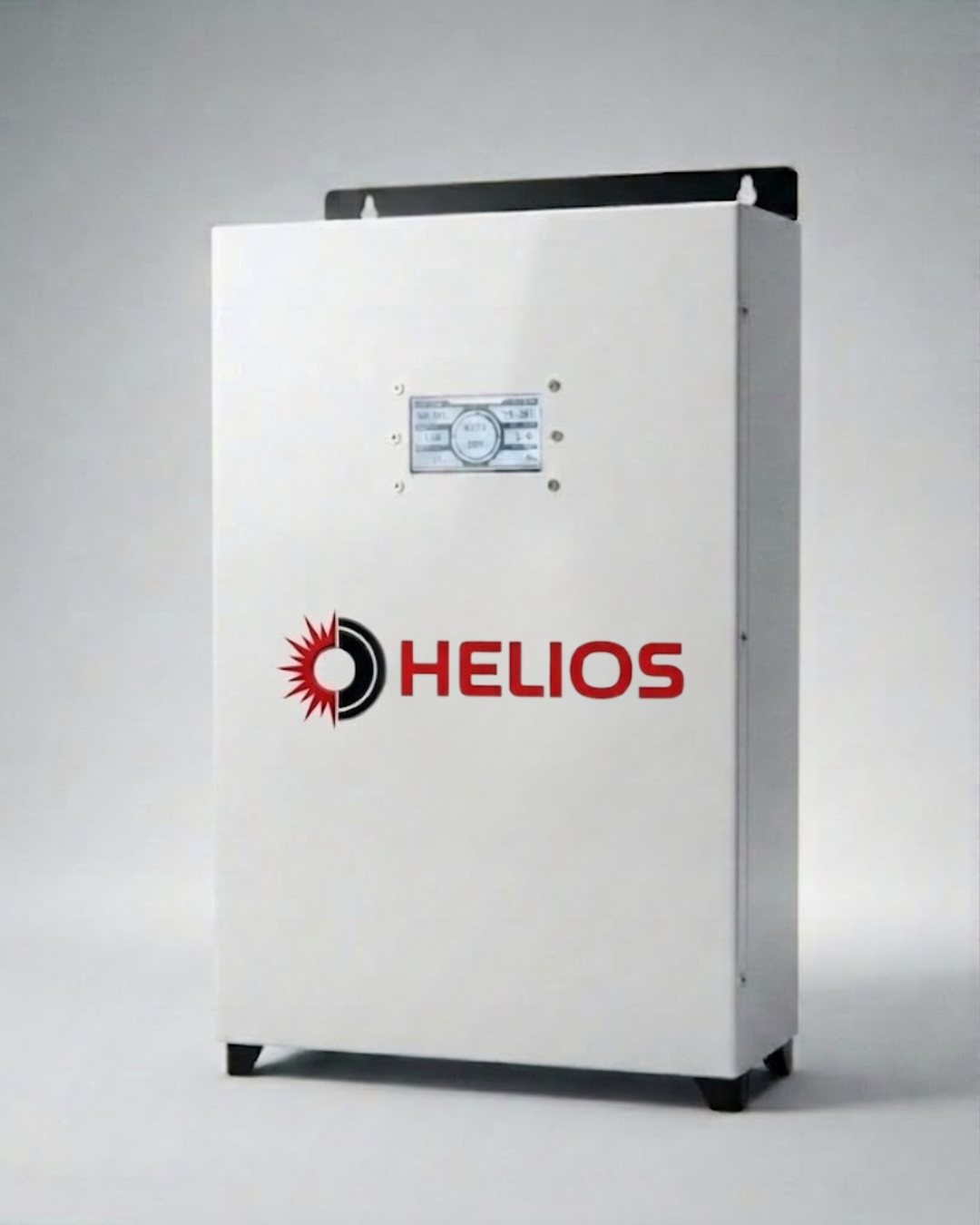

HELIOS Lithium-Ion 5kW

🔋 SBL 516 LiFePO₄ Battery
Performance Parameters
Cell Type: LiFePO₄
Cell Specification: 105
Number of Cells: 16
Nominal Voltage: 51.2V
Operating Voltage: 44.8V–57.6V
Nominal Energy: 5.37kWh
Usable Energy: 4.8kWh
Charge/Discharge Current (Recommended): 100A
Charge/Discharge Current (Max): 100A

Communication
Display: SOC, Faults, and Operating Status
Communication Protocol: RS485/CAN

General Parameters
Weight: 52.5kg
Dimensions (W×H×D ±1mm): 420×660×160mm
Parallel Connection: Up to 15 units (7.6kWh each)
Life Cycle: ≥6000 cycles (25°C, 90%DOD, 1C, 70%EOL)
Operating Temperature: Charge: 0°C–50°C, Discharge: -20°C–50°C
Storage Temperature: -20°C–45°C (≤1 month), -20°C–35°C (≤6 months)
Relative Humidity: 5%–95% (non-condensing)
Cooling Method: Natural Cooling
Installation: Floor-standing/Wall-mounted
Installation Environment: Indoor
Ingress Protection Rating: IP21
Maximum Operating Altitude: ≤2000m
Protection Features: Overvoltage, Overcurrent, Short Circuit, and Overtemperature Protection
Certification: CE, UN38.3
